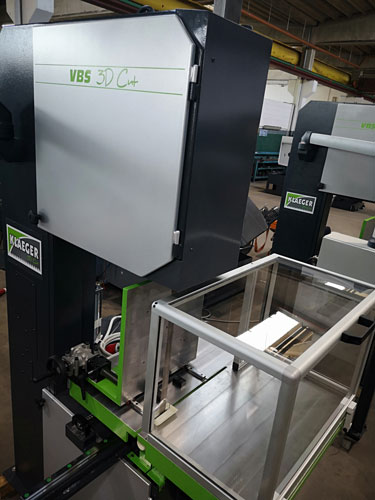

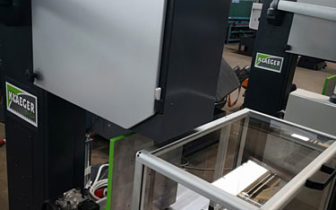

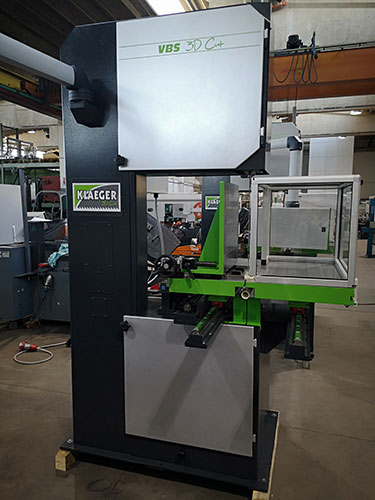

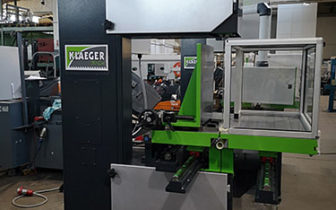

VBS 500 3D Cut


Cutting solution to separate the 3D printed parts from their baseplates.
Easy, safe and fast

Our sawing program completes finishing in laser melting with outstanding quality and unrivalled economic efficiency.

And is thus considerably faster than the conventional wire eroding machines. Rapid makeready times and significantly lower procurement costs give you a competitive edge and make the cash register smile.

  • Vertical bandsaw
  • For based plate dimensions until 500×530 mm
  • Suitable for all materials (inconel 718/625, stainless steel, aluminium, titanium, cobald chrome, gold, silver, special alloys, remanium alloys)

Cutting capacity

Type of tablehydraulic table
Cutting width500 mm
Cutting height520mm

Technical data

Table size900 (width) x 800 (length) mm with 4 T-slots
Sawblade dimension5060 x 34 x 1,1 mm
Dimensions H/W/D2070 x 1620 x 2542 mm
Weight1500 kg
Cutting speedcontinuous (max 750m/min)
Drive motor4.0 kW
Connected load400 Volt 50 Hz; 7.5A 3
