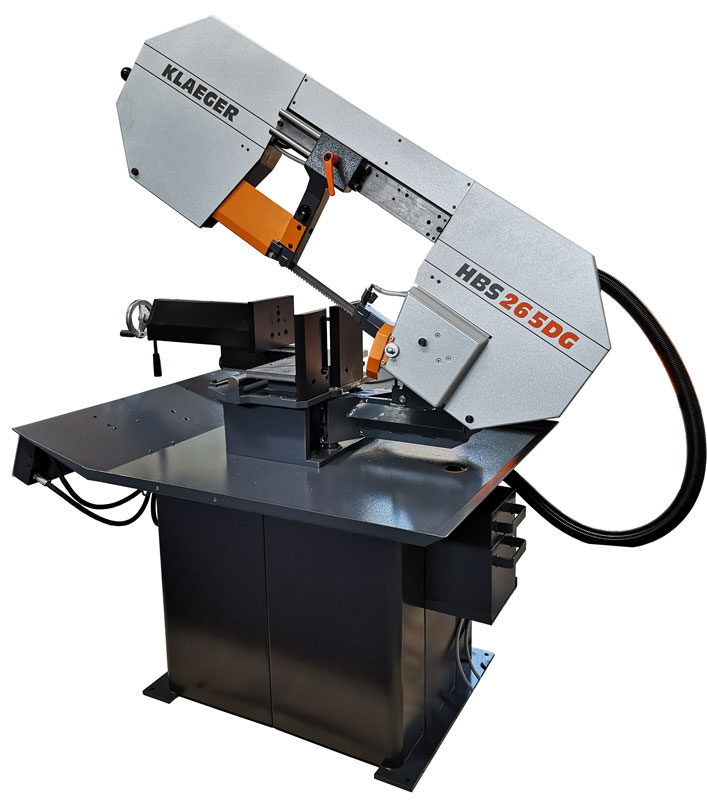

HBS 265 DG
KLAEGER HBS band sawing machines: an absolute must for every workshop!
These reliable band sawing machines stand out due to their easy and convenient handling. Despite their small dimensions they provide outstanding cutting performance: quality band sawing machines for all applications.
The KLAEGER HBS range stands out due to its user-friendliness and durability.
Machine features
- Gravitational cutting mode
- HBS 265 G: super fast mitring adjustment from 90°-30° right
- HBS 265 DG: super fast mitring adjustment from 90°-45° left and right

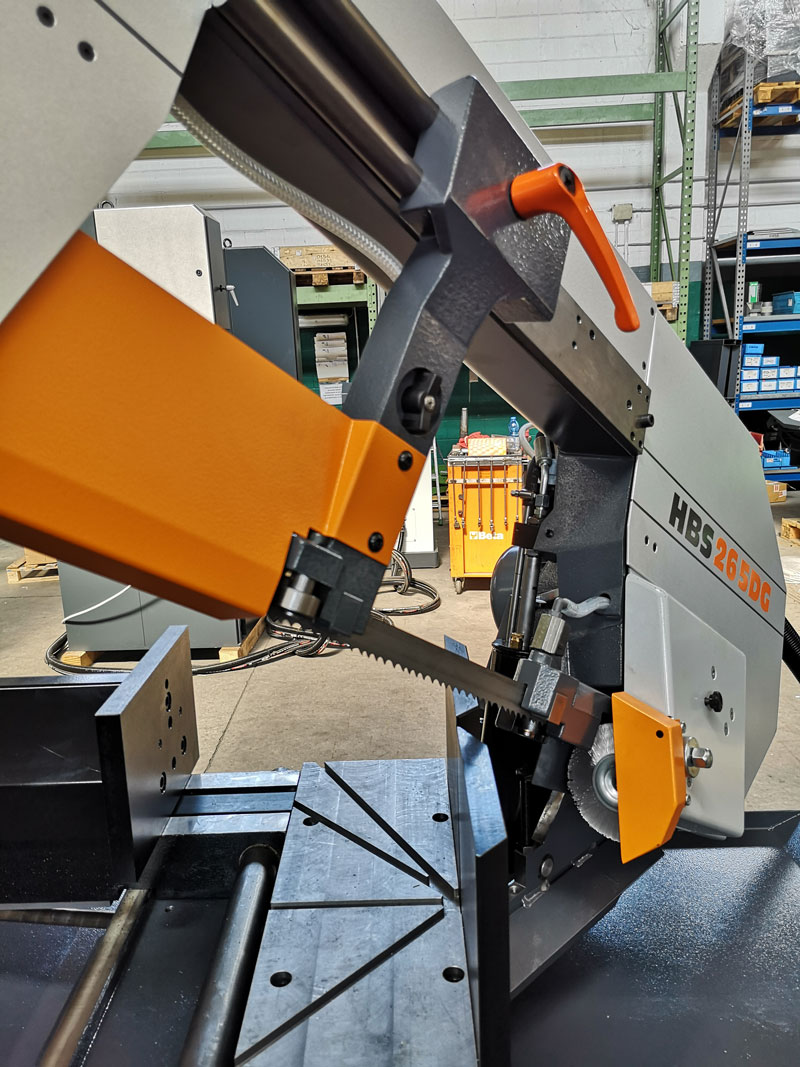

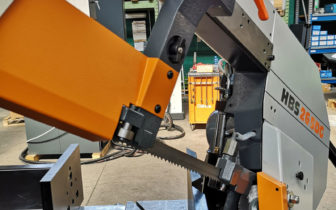

- Highly stable sawing frame with precise blade guide
- Outstanding cutting capacity

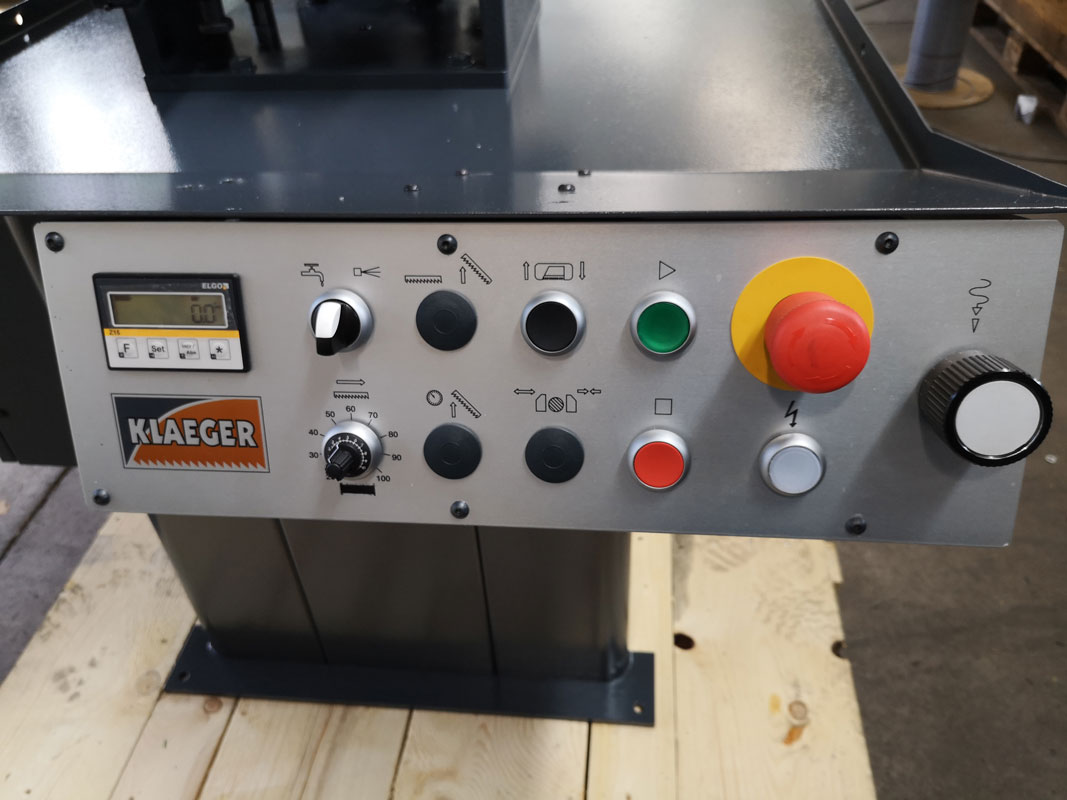

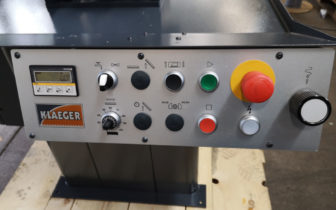

- All machines function on a clearly structured operating console
- Easy and convenient handling
Cutting capacity
| Cutting capacity | 90° | 75° le/ri | 60° le/ri | 45° le/ri | 30° left |
|---|---|---|---|---|---|
| 300x 150 | 280x 150 | 250x 150 | 200x 100 | 130x 100 | |
| 200x 200 | 200x 200 | 200x 200 | 180x 180 | 125x 125 | |
| 265 | 265 | 250 | 200 | 130 |
Technical data
| Motor power | 2,0 kW |
| Cutting speed | 15 – 100 m/min. controlled electronically |
| Operating voltage | 400 Volt 50 Hz three-phase current |
| Working height | 950 mm |
| Sawband dimensions | 3280 x 27 x 0,9 mm |
| Dimensions HxWxD | 1580 x 930 x 1400 mm |
| Total weight | 390 kg |
