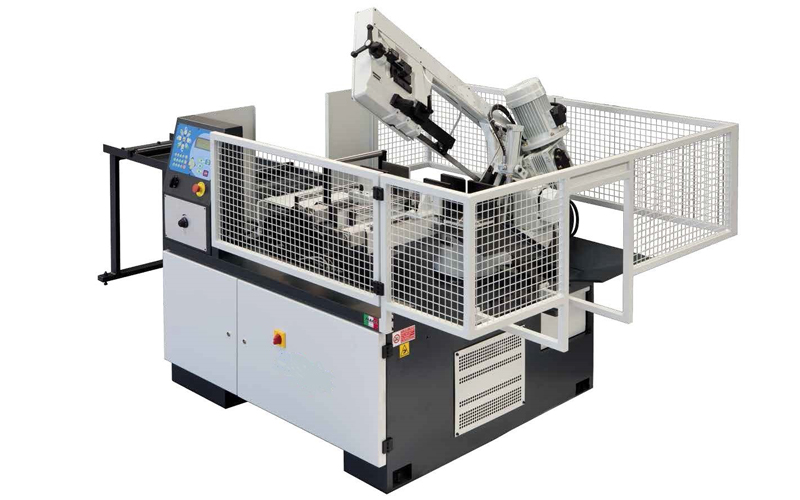

Fortuna 300 DG Oko
Klaeger Fortuna 300 G OK is an automatic and versatile band saw that can be used by all those who have to cut the most common metals in series.
Maschineneigenschaften
- Automatic cutting cycle
- Degree cutting up to +60° to the right
- Suitable for the most common materials
- Sturdy base constructed with folded and ribbed sheet metal
- Infinitely variable cutting speed
- Adjustable head feed
- Possibility of semi-automatic cutting
Cutting capacity
| Cutting capacity | 0° | 45° | 60° |
|---|---|---|---|
| 3200x 290 | 220x 220 | 130x 130 | |
| 290 | 265 | 130 | |
| 300 | 265 | 130 |
Technical data
| Motor power | 2.2 kW |
| Cutting speed | 20/90 m/min. |
| Working height | 850 mm |
| Sawband dimensions | 3200 x 27 x 0,9 mm |
| Dimensions HxWxD | 1950 x 3385 x 1820h mm |
| Total weight | 960 kg |
