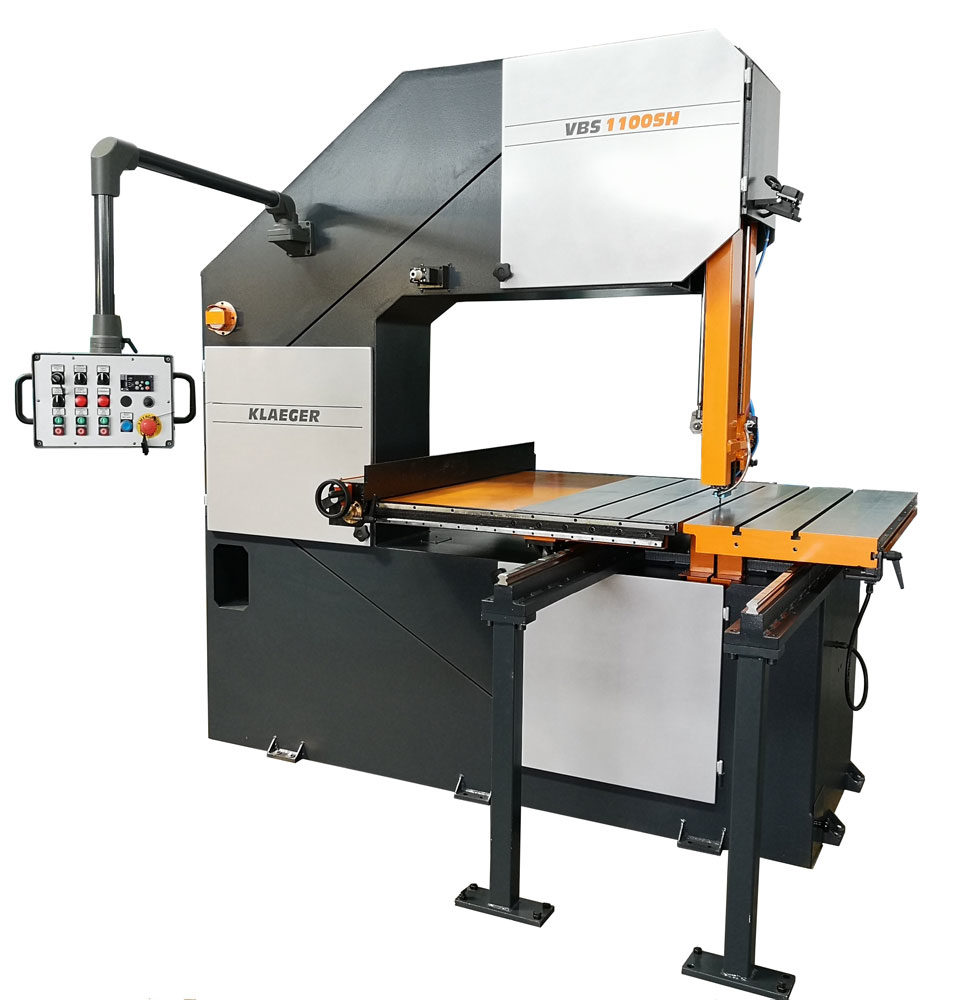

VBS 1100 SH

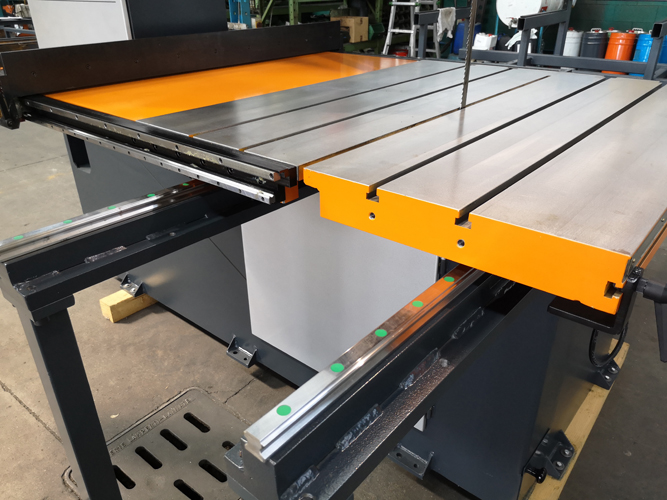

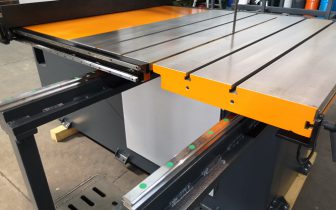

hydraulic movable table (available also with fixed table)

high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc.

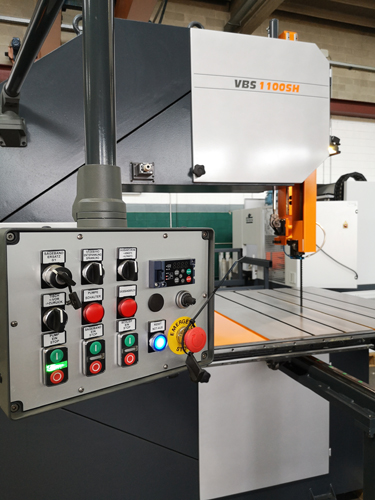

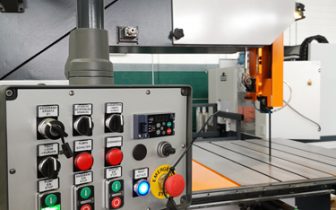

KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more.

Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop.



Standard machine features

  • Continuous band speed
  • Digital speed display
  • Hardened and grinded sawblade guide
  • Height-adjustable guide arm
  • Cutting data table with lots of materials
  • Integrated LED workstation light
  • Hydraulic sawblade tension

Cutting capacity

Type of table hydraulic table
Cutting width 1100 mm
Cutting height 535 mm

Technical data

Table size 1000 x 1200 mm with 4 T-slots
Table load capacity 800 kg
Sawblade length 5670 mm
Sawblade width 27 or 34 mm
Dimensions H/W/D 2580 x 2300 x 2500 mm
Weight 2000 kg
Colour anthracite/silver RAL 7016 / RAL 9006
Drive specification Drive motor, controlled electronically
Cutting speed "at a ratio of 1:10
(for example 100-1000m/min.)."
Connected load 5.5 kW; 7.5 A
