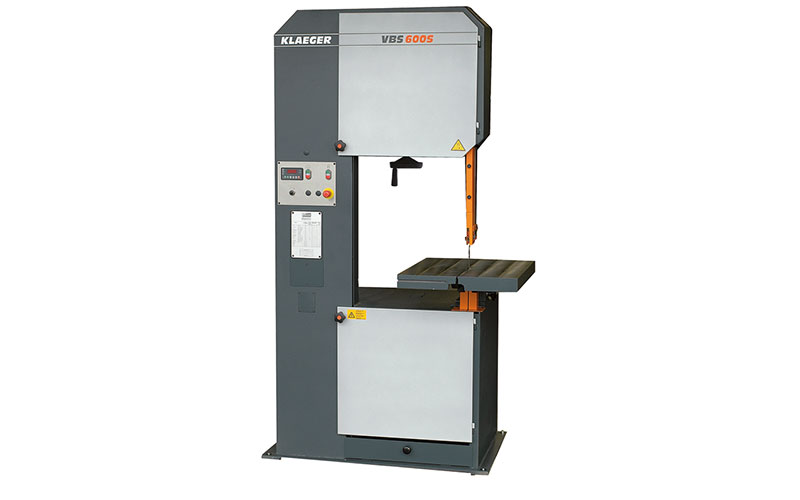

VBS 600 S
– fixed table (available also with manual table or hydraulic table)
– high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc.
KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more.
Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop.
Standard machine features
- Continuous band speed
- Digital speed display
- Hardened and grinded sawblade guide
- Height-adjustable guide arm
- Cutting data table with lots of materials
- Integrated LED workstation light
Cutting capacity
| Type of table | fixed table |
|---|---|
| Cutting width | 600 mm |
| Cutting height | 585 mm |
Technical data
| Table size | 600 x 760 mm |
| Table load capacity | 500 kg |
| Sawblade length | 5060 mm |
| Sawblade width | 13 – 27 mm (*) |
| Dimensions H/W/D | 2555 x 1410 x 1180 mm |
| Weight | 720 kg |
| Colour | anthracite/silver RAL 7016 / RAL 9006 |
| Drive specification | Drive motor, controlled electronically |
| Cutting speed | continuous 150-1000 m/min. (only with max. 27 mm blade) |
| Connected load | 4.0 kW; 7.5 A |
