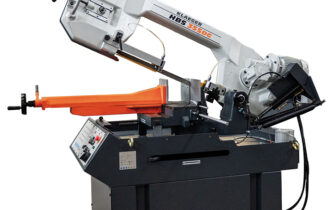

HBS 355 DG
KLAEGER HBS band sawing machines: an absolute must for every workshop!
These reliable band sawing machines stand out due to their easy and convenient handling. Despite their small dimensions they provide outstanding cutting performance: quality band sawing machines for all applications.
The KLAEGER HBS range stands out due to its user-friendliness and durability.
Machine features
- Gravitational cutting mode for precise and controlled cuts
- Miter cuts: Quickly adjustable from 90° to 45° or 30°, both left and right
- High-stability saw frame for maximum robustness and reliability
- Outstanding cutting performance for the highest precision and efficiency
- Easy and convenient handling
Cutting capacity
| Cutting capacity | -45° | 0° | 45° | 60° |
|---|---|---|---|---|
| 300(h)x 250 | 300(h)x 500 | 290(h)x 360 | 170(h)x 240 | |
| 270 | 300 | 290 | 170 | |
| 300 | 355 | 355 | 240 |
Technical data
| Motor power | 2,0 kW |
| Cutting speed | 20 - 80 m/min. controlled electronically |
| Operating voltage | 400 Volt 50 Hz three-phase current |
| Working height | 870 mm |
| Sawband dimensions | 3770 x 34 x 1,9 mm |
| Dimensions HxWxD | 2170 x 900 x 1570 mm |
| Total weight | 630 kg |
