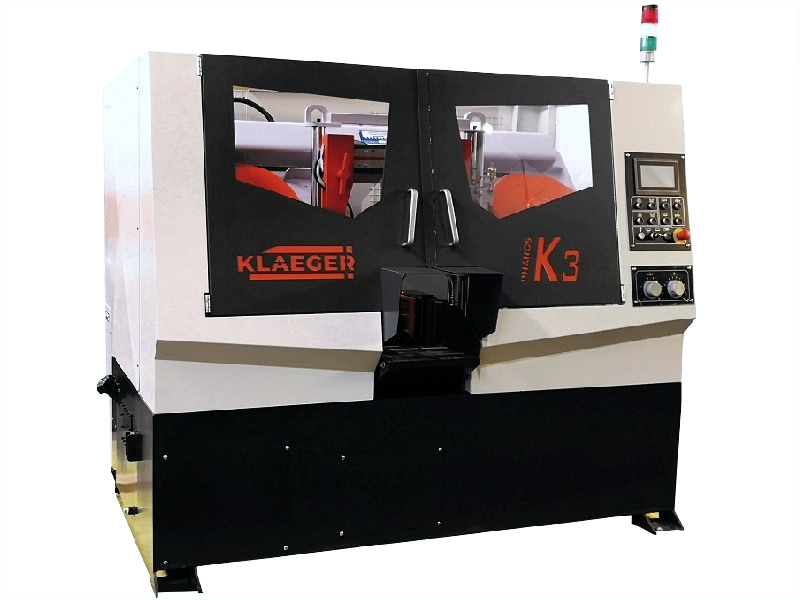

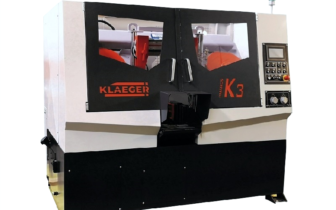

Pharos K3
Klaeger K line sawing machines, are the high productive and budget solution to cut common steels and tough materials (such as stainless steels, tool or mould steels).
Machine features
- Dual column head feed design, for superior tool rigidity and cutting tolerance
- Fully enclosed machine design, for a safe and clean working environment, allowing at the same time extremely
easy maintenance operations - Cutting parameters adjusted from the control panel (band speed set by controller and correct feed force
suggested on the display) - Sturdy movable band guide for limited risk of band deviation
- Full stroke clamping vices, requiring no adjustments
- Index movement controlled by encoder, for an accurate and fast material positioning
- Band cleaning brush and automatic chip conveyor for swarf removal
- Large capacity coolant pump for high coolant delivery in the cutting area
- Hydraulic band tension to always guarantee the proper band tension
Cutting capacity
| Cutting capacity | 90° |
|---|---|
| 300 | |
| 300 x 300 |
Technical data
| Drive three phase motor electronically controlled | 4,0 kW |
| Cutting speed continuous | 20 - 100 m/min. |
| Feed length in fully automatc operation per lift | 400 mm |
| Residual length in semiautomatic operation | 20 mm |
| Residual length in automatic operation | 100 mm |
| Working height | 800 mm |
| Sawblade tension | Hydraulic |
| Sawblade dimensions | 3920 x 34 x 1,1 mm |
| Dimensions HxWxD | 2100 x 2173 x 1845 mm |
| Total weight | 2200 kg |
