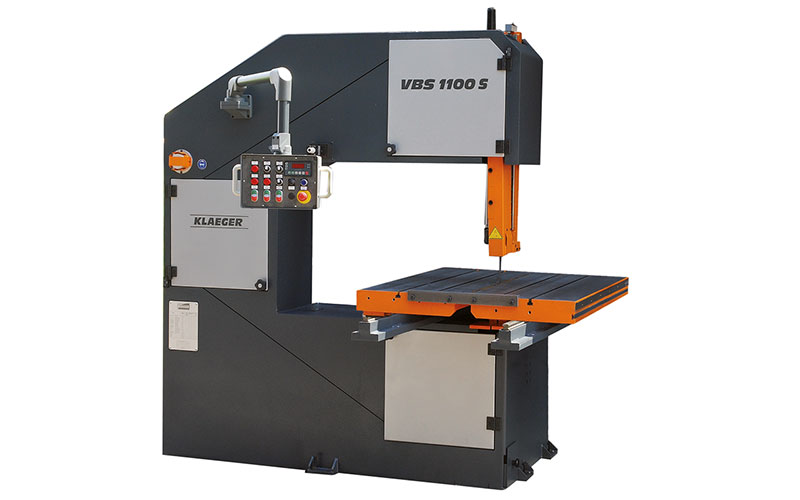

VBS 1100 S


fixed table (available also with hydraulic table)

high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc.

KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more.

Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop.



Standard machine features

  • Continuous band speed
  • Digital speed display
  • Hardened and grinded sawblade guide
  • Height-adjustable guide arm
  • Cutting data table with lots of materials
  • Integrated LED workstation light
  • Hydraulic sawblade tension

Cutting capacity

Type of table fixed table
Cutting width 1100 mm
Cutting height 690 mm

Technical data

Table size 1000 x 1150 mm
Table load capacity 800 kg
Sawblade length 5670 mm
Sawblade width 13 – 27 mm (*)
Dimensions H/W/D 2570 x 2420 x 1300 mm
Weight 1650 kg
Colour anthracite/silver RAL 7016 / RAL 9006
Drive specification Drive motor, electronically controlled
Cutting speed at a ratio of 1:10
(for example 100-1000m/min.)
Connected load 4.0 kW; 7.5 A
