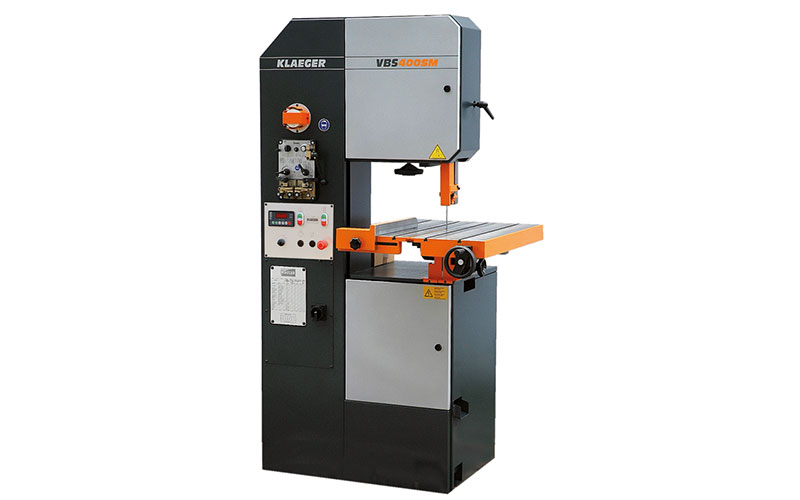

VBS 400 EM
– manual movable table (available also with fixed table or hydraulic table)
– for all-round application with an emphasis on steel (available also with high cutting speed to cut aluminium)
KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more.
Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop.
Standard machine features
- Continuous band speed
- Digital speed display
- Hardened and grinded sawblade guide
- Height-adjustable guide arm
- Cutting data table with lots of materials
- Integrated LED workstation light
Cutting capacity
| Type of table | manual table, feed with hand wheel |
|---|---|
| Cutting width | 400 mm |
| Cutting height | 390 mm |
Technical data
| Table size | 600 x 760 mm with 4 T-slots |
| Sawblade length | 3600 mm |
| Sawblade width | 4 – 20 mm |
| Dimensions H/W/D | 2225 x 1120 x 1020 mm |
| Weight | 500kg |
| Colour | anthracite/silver RAL 7016 / RAL 9006 |
| Drive specification | Three-phase motor, controlled electronically |
| Cutting speed | continuous 15-300 m/min. |
| Connected load | 1.5 kW; 3.9 A |
